Key Product Benefits

• Compact footprint
• SC-APC interface with optional internal laser safety shutter
• Multiple cable entry points
• Greenfield and Brownfield
• Flexible mounting options:
  – Wall
  – Baseboard
  – Wall plate mount

The CCP5 serves as a single fiber connection/demarcation point and is typically used at the MDU point-of-entry or as the FTTH ONT access point. The unit is directly wall mountable, or may be mounted onto a single gang wiring box using an included wall plate. These enclosures provide a secure location for slack storage and fiber connections.

Key Product Benefits

• Low profile, aesthetically pleasing, fiber demarcation/ONT access point
• Gang box or wall mountable and optionally enables ONT mounting
• Greenfield and Brownfield
• Supports field termination, fusion (2x)
• Tii’s FPS Series Fiber Pathway compatible

The CCP7 Series provides a secure location for slack storage and fiber connections. An aesthetically pleasing, low profile cover easily snaps over the base. An optional snap on ONT mounting plate is also available to simplify ONT installations. The integrated SC adapter utilizes a safety shutter to prevent accidental light exposure, dust contamination, and ferrule damage. An LC adapter version is also available.

Key Product Benefits

• Compact footprint featuring SC-APC interface with optional internal laser safety shutter
• Secondary Keystone port for optional connections such as coax, RJ-45 or RJ-11
• Greenfield and Brownfield
• Flexible mounting options: Wall, Baseboard, Electrical gang box

The CCP6 serves as a single fiber connection/demarcation point and is typically used at the customer premise point-of-entry, or as the FTTH ONT access point. This unit is directly wall mountable, or may be mounted on to a single gang wiring box.

Key Product Benefits

• Accommodates SC, SC-APC connectors
• Compact design can direct terminate up to 2 fibers or fusion splice
• Ideally used as an access point for MDU and FTTH ONTs as well as FTTD
• Available with factory loaded pigtails

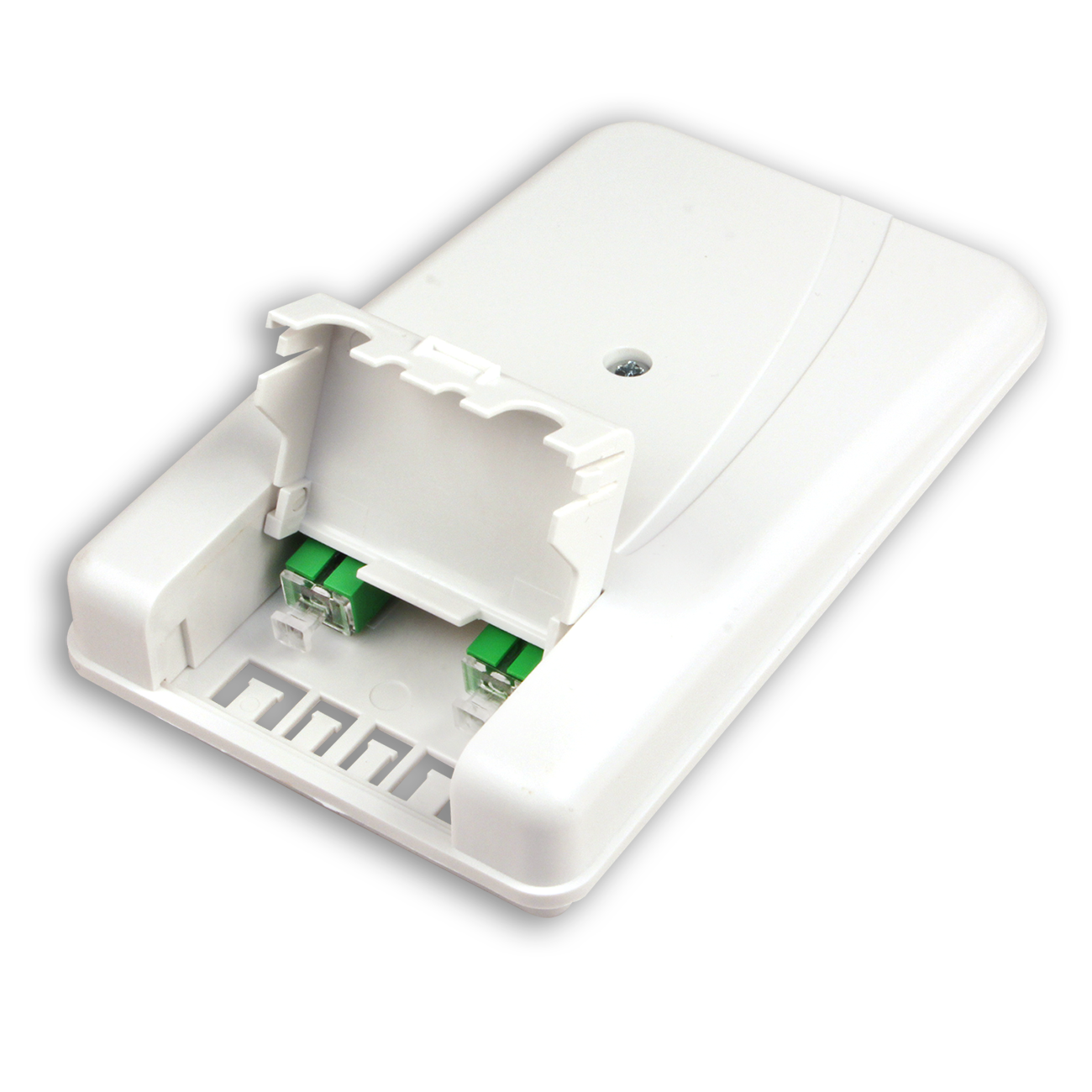

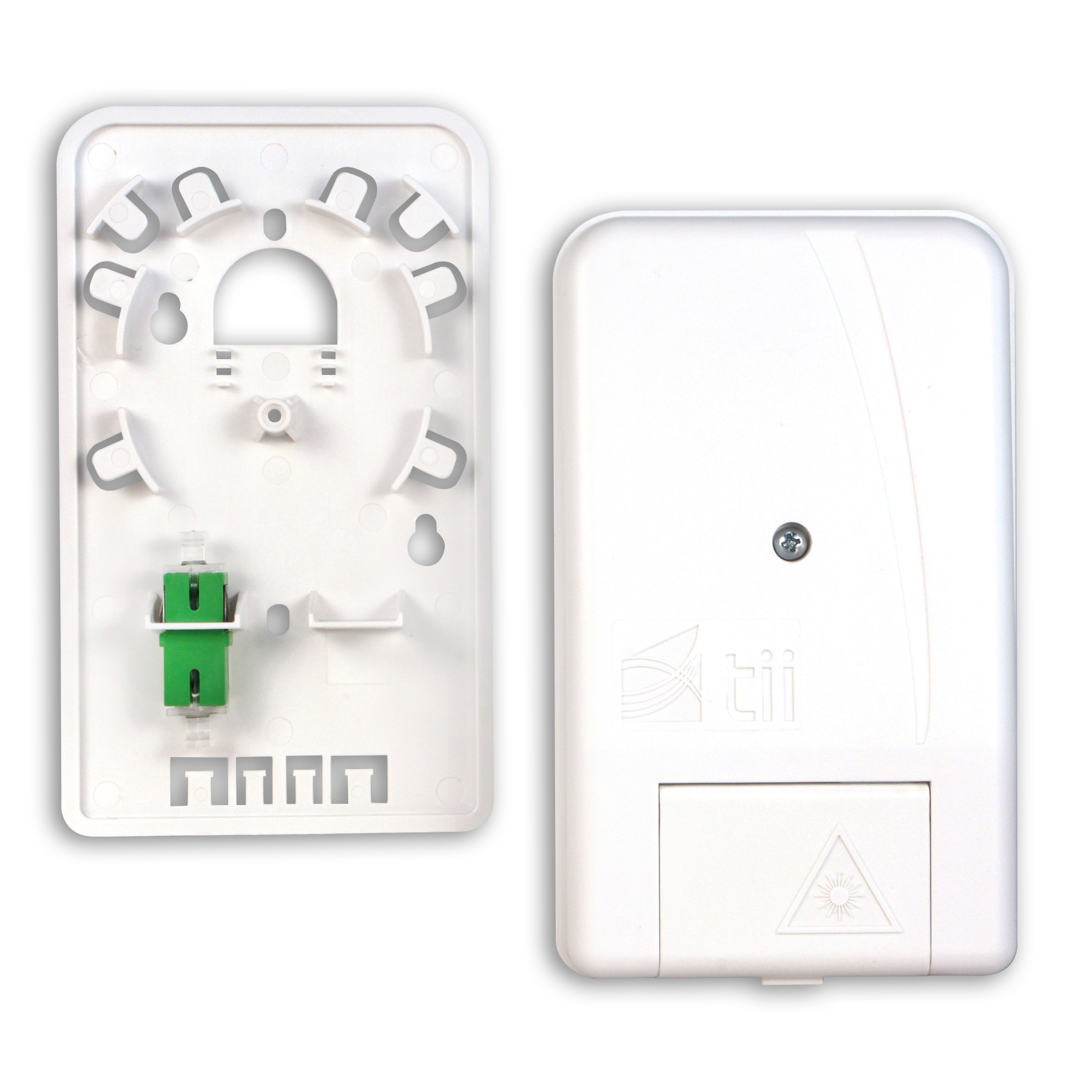

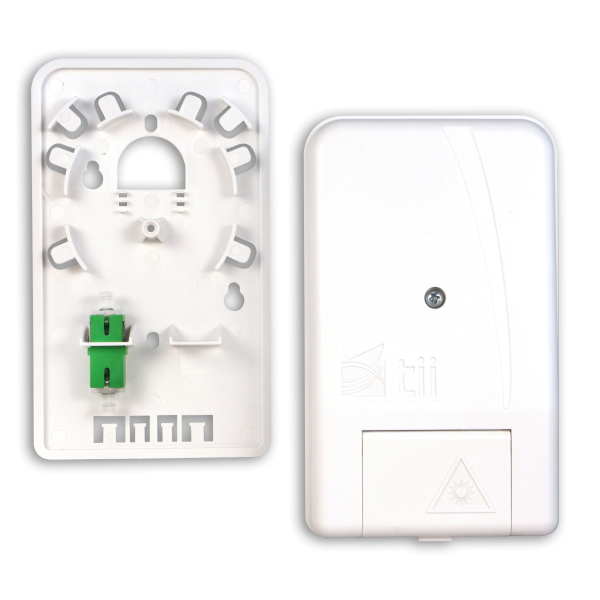

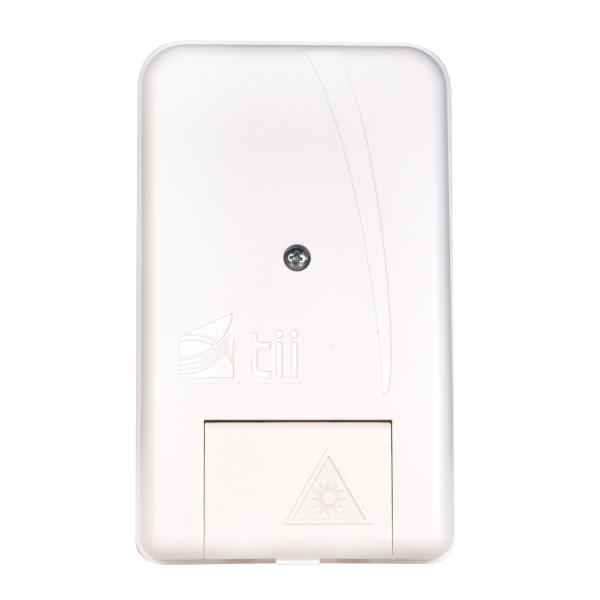

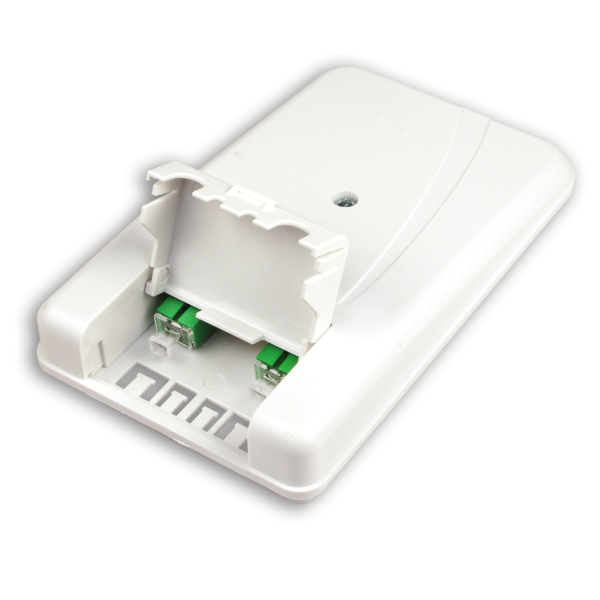

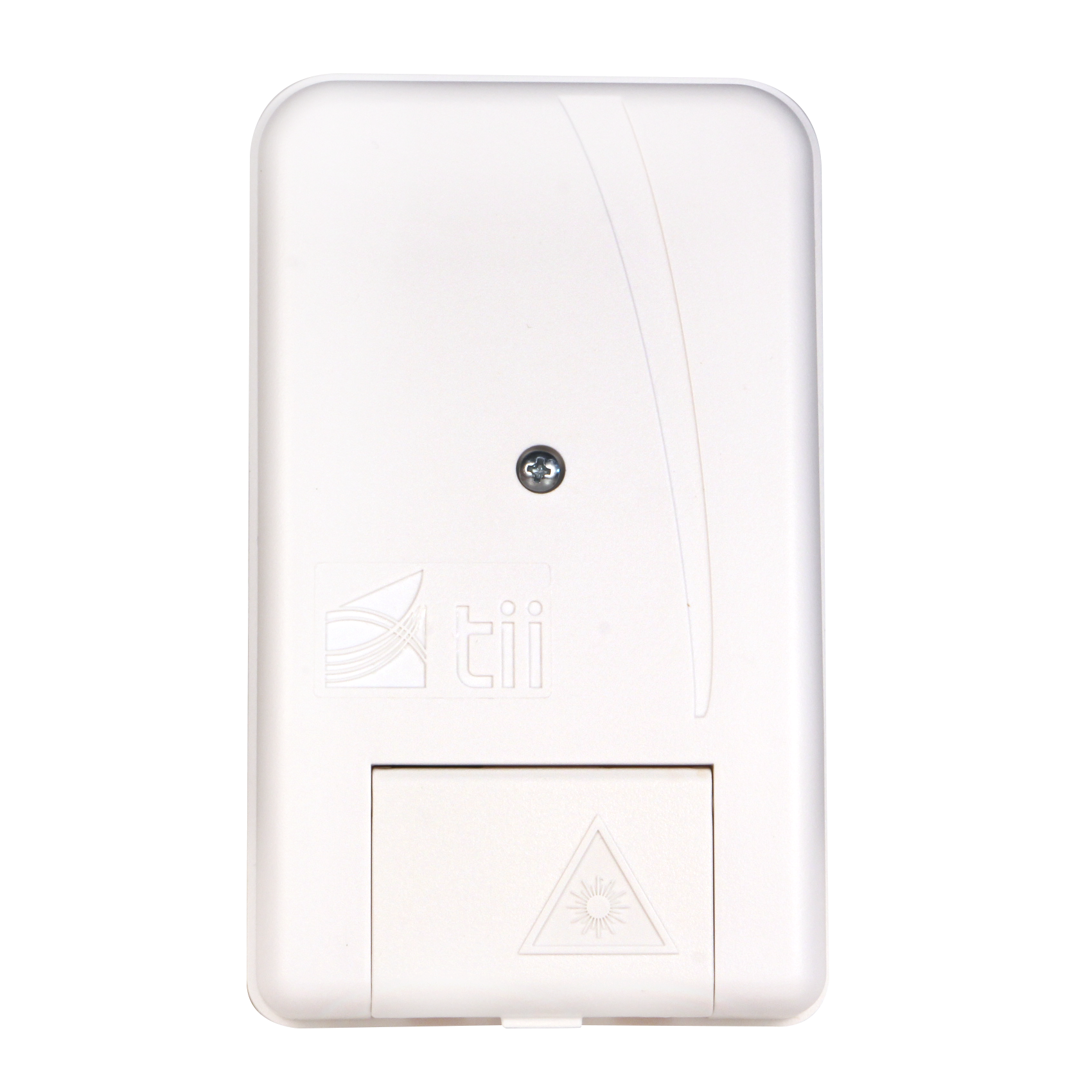

The CCP3 Series is a compact, indoor wall mount fiber termination and distribution enclosure. This unit is typically used as MDU ONT access point, FTTH ONT access point as well as FTTD desktop access point.

Key Product Benefits

• Accommodates SC, SC-APC and LC connectors
• Compact design can terminate up to 2 fibers with direct termination or fusion splice configurations
• Ideally used as an access point for MDU point-of-entry
• Optionally mountable to single-gang wall box

The CCP2 Series is a compact, indoor wall mount fiber termination and distribution enclosure. This unit is typically used as MDU point-of-entry
or FTTH ONT access point.

Key Product Benefits

• Accommodates SC, SC-APC and LC connectors
• Compact design can terminate up to 2 fibers
• Ideally used as an access point for MDU and FTTH ONTs as well as FTTD
• Separate splice tray door with slack storage

The CCP1 Series is a compact, indoor wall mount fiber termination and distribution enclosure. This unit is typically used as MDU ONT access point, FTTH ONT access point as well as FTTD desktop access point.
