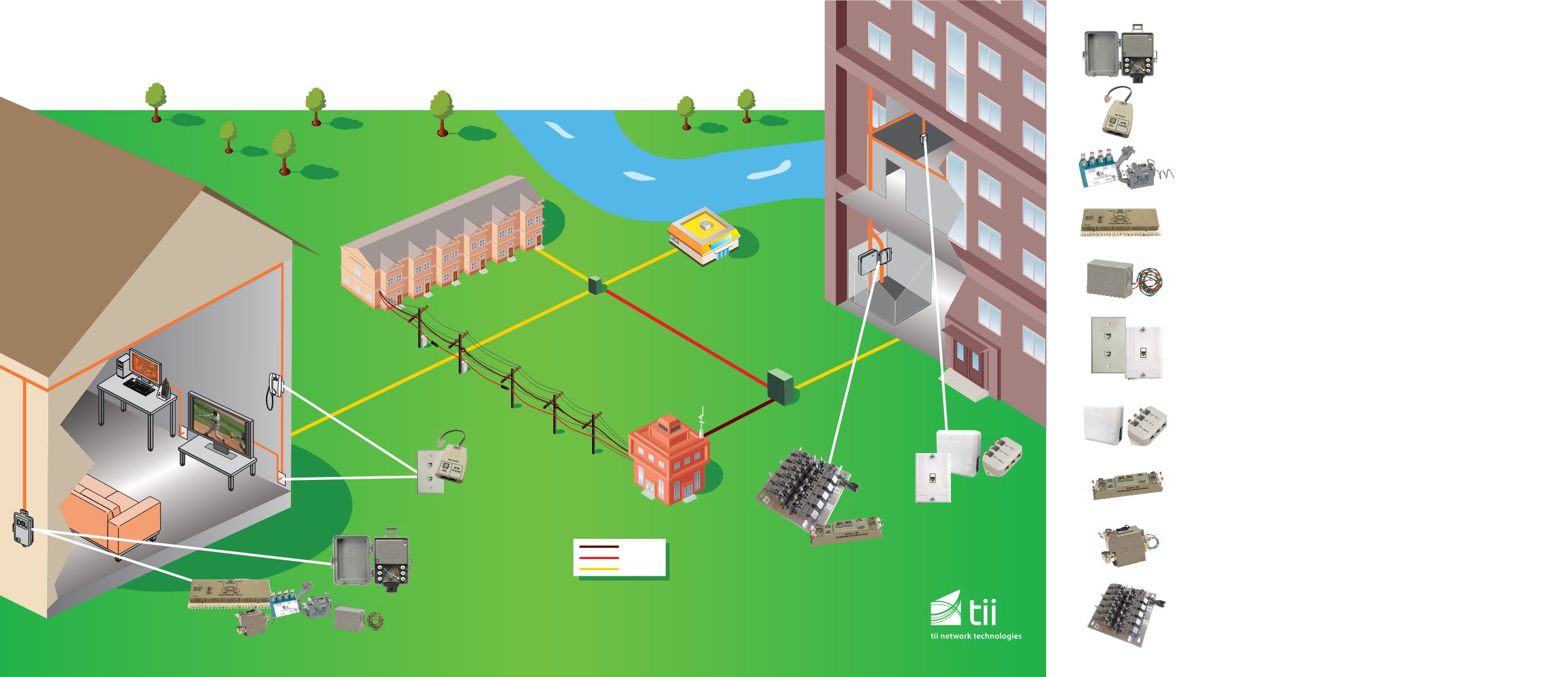

DISTRIBUTION
POINT
CROSS
CONNECT
LOW-RISE
MDU
RETAIL
DISTRIBUTION
FEEDER CABLES
DROPS
CENTRAL OFFICE
Tii offers an extensive line of products to fulfill all your xDSL requirements. Our in-house engineering staff,
state-of-the-art testing facility and world class manufacturing strive to deliver innovative network solutions
capable of meeting the changing needs of telecommunications service providers.
C O M P L E T E N E T W O R K I N G S O L U T I O N S
xDSL
ADSL POTS Splitter Outdoor Ancillary Device
DSL POTS Splitter Modules for VDSL2/ADSL2+, IPTV Services
Indoor In-Line xDSL Filter
xDSL POTS Splitter
5 Pair xDSL POTS Splitter with 25 Pair BIX Distribution Connector
Flush Mount Indoor Phone Jack Plates
Indoor DSL POTS Splitter Modules for VDSL2/ADSL2+, IPTV Services
Intercom System Bypass
VDSL POTS Splitter Module with VDSL Output on Coax Port
MDU xDSL POTS Splitter Panel
R E S I D E N T I A L
H I G H - R I S E M D U
The
3310D DSL POTS Splitter Outdoor Ancillary Device
splits the combined voice and data signal carried on telephone lines to
provide separate outputs for both phone and data services. Asymmetrical Digital Subscriber Line (ADSL) provides high-bit-rate
digital information over telephone subscriber lines. “POTS” stands for Plain Old Telephone Line.
The
372S-12 & 95S Series DSL POTS Splitter Modules
split the combined voice and data signals carried on telephone lines
providing separate outputs for both phone and data services. It utilizes enhanced circuit components to meet VDSL2/ADSL2+ splitter
specifications for advanced data and IPTV deployments.
The
80-500
Indoor In-Line xDSL Low Pass Filter
is a passive in-line device designed to block Asymmetric Digital Subscriber Line
(xDSL) signals from the subscriber’s telephone line, allowing the POTS signal to pass through unaffected. The unit is designed with a
second unfiltered RJ-11 jack on the output side for connection to DSL equipment.
The
UVS-12 POTS Splitter
is a single line unit designed to be installed in series on the telephone line at the customer’s premises
providing a filtered POTS line connection for customer use. This splitter is designed to be used for all DSL services operating up to
30 MHz frequencies.
The
761-4T-12
&
761SM-12 Series POTS Splitters
split the combined voice and data signals carried on telephone lines providing
separate outputs for both phone and data services. It utilizes enhanced circuit components to meet VDSL2/ADSL2+ splitter
specifications for advanced data and IPTV deployments. The 761SM-12 contains Tii’s Auto-Jack®, which when engaged, connects the
RJ-11 test plug contacts to the central office (CO) for dial tone validation while disconnecting the customer from the circuit.
The
751-1T-12
&
80-410V Indoor DSL POTS Splitter Modules
split the combined voice and data signals carried on telephone lines
providing separate outputs for both phone and data services. It is designed to be mounted inside the customer premises near
where the phone service enters the building. RJ jacks or sealed rocker/IDC terminals connect directly to the equipment with data-
grade cabling. This unit enhanced circuit components to meet VDSL2/ADSL2+ splitter specifications for advanced data and IPTV
deployments. The 751-1T-12 contains Tii’s Auto-Jack®, which when engaged, connects the RJ-11 test plug contacts to the central office
(CO) for dial tone validation, while disconnecting the customer from the circuit.
The Tii
ISB
enables sensitive VDSL2 signals to bypass around telephone and gate entry systems commonly used in apartment
buildings and gated communities. The module enables the POTS portion of the Telco’s signals to be routed through the entry system
and recombined with the pristine DSL signal for transport to the apartment or home, avoiding the severe losses associated with
routing the DSL signal through the telephone entry system. The ISB module easily snaps into the Tii ISB-Plate adapter panel.
The
97FB-S VDSL POTS Splitter Module
splits the combined voice and data signal carried on telephone lines. The POTS output is
provided on a dual IDC connector, and VDSL output on a 75 ohm female “F” coax connector. The balanced twisted pair input signal
is impedance matched to a single ended coax VDSL output which is lowpass filtered to 8.5MHz, allowing for coexistence with
12-28MHz HPNA signals on a single coax wire. The Tii 97FB-S module also provides the Tii AutoJack®, a switchable RJ11 jack, as the
customer demarcation point.
The
712-99S-12
is equipped with 99S Series VDSL2/ADSL2+ POTS Splitter Modules that split the combined voice and data signal
carried on telephone lines to provide separate outputs for both phone and data services. The Tii 99S-12 utilizes enhanced circuit
components to meet VDSL2/ADSL2+ service for IPTV requirements. The Tii 712 Series Mounting Plate comes equipped with wire
guides and retainers to facilitate up to 12 Tii 99S-12 modules.
POTS Splitter
Panel
POTS Splitter
Outdoor
Ancillary Device
Intercom System
Bypass
Flush Mount
Indoor Phone
Jack Plate
Indoor POTS
Splitter
Modules
Indoor In-line
xDSL Filter
Flush Mount
Indoor Phone
Jack Plate
The
BIX-5UVS-12
is a 5 pair xDSL POTS splitter for multi-pair xDSL service deployment. Utilizing a BIX mounting rack system, it is
designed for all DSL services operating up to 30 MHz frequencies. The module incorporates five independent Tii UVS-12 DSL splitter
circuits. Each splitter circuit is designed to be installed in series on the telephone line at the customer’s premise, providing a
filtered POTS line connection for customer use.
xDSL POTS
Splitter Modules
